TSKgel Butyl-NPR

TSKgel Butyl-NPR is based on a non-porous polymethacrylate base material with uniform 2.5 µm particle size. It is the least hydrophobic among the TSKgel HIC columns and requires a higher salt concentration for binding.

TSKgel Butyl-NPR is the best choice for high speed separations with excellent recovery even for more hydrophobic samples. The non-porous resin requires lower sample loading and leads to faster analysis time. TSKgel Butyl-NPR is particularly popular for the analysis of drug to antibody ratios (DARs) of antibody drug conjugates (ADCs).

NPR stands for Non-Porous Resin.




P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
14947TSKgel Butyl-NPR2.5Stainless Steel4.63.51,205
42168TSKgel Butyl-NPR2.5Stainless Steel4.6101,501



Product Attributes

Pore size (mean): non-porous
Particle size (mean): 2.5 µm
pH stability: 2.0-12.0
Functional group: butyl

Structure:

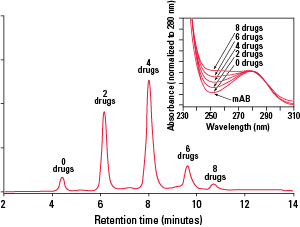

Determination of Drug to Antibody Ratio
Using a TSKgel Butyl-NPR Column






Republished with permission of Genentech, Inc., from Analytical methods for physicochemical characterization of antibody drug conjugates, Wakankar A, Chen Y, Gokarn Y, Jacobson FS., 3, 2011; permission conveyed through Copyright Clearance Center, Inc.


Analysis of Monclonal Antibody and Aggregates Using a TSKgel Butyl-NPR column





Column: TSKgel Butyl-NPR, 2.5 μm,
4.6 mm ID × 3.5 cm

Mobile phase: A: 3 mol/L NaCl
B: H2O
Gradient: 0-100% B in 10 min
Flow rate: 1.0 mL/min
Detection: flourescence; Ex: 280 nm, Em: 348 nm
Injection vol.: 5 μg
Sample: lgG1

For additional applications, please see our applications database.
