TSKgel G5000PWxl-CP

The TSKgel G5000PWxl-CP column was specifically developed for the analysis of water-soluble cationic polymers with molecular weights up to 1 × 106 Da. Composed of 10 µm polymethacrylate beads, cationic groups are introduced on the surface of the TSKgel G5000PWxl-CP packing material to prevent adsorption of cationic polymers and allow elution under low salt conditions.

These columns show high theoretical plate numbers, linear calibration curves and high durability because the base resin is the same as that used in the TSKgel PWxl series columns.




P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
21874TSKgel G5000PWxl-CP10Stainless Steel7.8301,906


Product Attributes

Base material: polymethacrylate
Particle size (mean): 10 µm
Pore size (mean): 100 nm
Exclusion limit: 1.0 × 10Da
Separation range (PEO,PEG) 400 ~ 5.0 × 10Da
Theoretical plates: 10,000

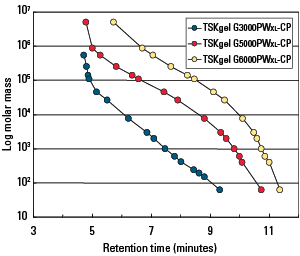

PEG and PEO Calibration Curves


Columns: TSKgel G3000PWXL-CP, 7 µm,
7.8 mm ID × 30 cm
TSKgel G5000PWXL-CP, 10 µm,
7.8 mm ID × 30 cm
TSKgel G6000PWXL-CP, 13 µm,
7.8 mm ID × 30 cm

Mobile phase: H2O with 0.1 mol/L NaNO3
Flow rate: 1.0 mL/min
Detection: Rl
Temperature: 25 °C
Samples: polyethylene oxides (PEO) standards
polyethylene glycols (PEG) standards



Analysis of Cationic Polymers






Columns: TSKgel G3000PWXL-CP, 7 μm, 7.8 mm ID x 30 cm
TSKgel G5000PWXL-CP, 10 μm,7.8 mm ID x 30 cm
TSKgel G6000PWXL-CP, 13 μm,7.8 mm ID x 30 cm
Mobile phase: H2O with 0.1 mol/L NaNO3
Flow rate: 1 mL/min
Detection: RI
Temperature: 25 °C
Sample Load: 3 g/L, 100 μL



Analysis of PAA




Column: TSKgel G5000PWXL-CP, 10 μm, 7.8 mm ID x 30 cm
Mobile phase: H2O with 0.1 mol/L NaNO3
Flow rate: 1.0 mL/min
Detection: RI
Temperature: 25 °C
Sample: polyallylamine-HCl (PAA)
Sample load: 3 g/L, 100 μL

For additional applications, please see our applications database.



Code #DescriptionLiterature Type
AO01 Gel Filtration Chromatography with TSKgel columns Application Overview
DS1227 TSKgel PWxl-CP ProductsOperating Conditions and Specifications
IM01 TSKgel Column Instruction ManualInstruction Manual
LCAT01B TSKgel U/HPLC Columns 2019 Product Guide -- SEC, PW Series ColumnsProduct Catalog
PO17 TSKgel PWXL-CP Columns Size Exclusion Chromatography for Cationic Polymer AnalysisProduct Overview
SR106 Aqueous SEC Columns for Analysis of Cationic Polymers: TSKgel PWxl-CP SeriesSeparation Report
P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
21876TSKgel G3000-G6000PWxl-CP Guard Column for 7.8 mm ID columns 13Stainless Steel64637
