Products

HPLC Columns

TSKgel ODS-100V, 5 µm

TSKgel ODS-100V, 5 µm reversed phase columns are general purpose columns suitable for the most demanding separations in quality control as well as in research and development. Containing a unique surface property utilizing highly efficient bonding and endcapping procedures, secondary interactions of basic, acidic, and chelating compounds are limited.



TSKgel ODS-100V, 5 µm columns provide strong retention for polar compounds as these types of compounds are retained by hydrophobic association, plus by enhanced interaction of their polar groups with the more polar surface of the TSKgel ODS-100V, 5 µm column. In addition to the strong retention, these columns also provide higher selectivity for polar compounds. Monomeric bonded phase chemistry of the TSKgel ODS-100V, 5 µm packing material provides complete wetting and retention stability in 100% aqueous mobile phases.



TSKgel ODS-100V, 5 µm columns are the best choice for challenging compounds, including acidic, basic, zwitterionic, and chelating compounds.



P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
0022709TSKgel ODS-100V, 5 µm5Stainless Steel22399
0022710TSKgel ODS-100V, 5 µm5Stainless Steel23.5496
0021457TSKgel ODS-100V, 5 µm5Stainless Steel25685
0022711TSKgel ODS-100V, 5 µm5Stainless Steel27.5700
0022712TSKgel ODS-100V, 5 µm5Stainless Steel210708
0021458TSKgel ODS-100V, 5 µm5Stainless Steel215724
0022713TSKgel ODS-100V, 5 µm5Stainless Steel225806
0022714TSKgel ODS-100V, 5 µm5Stainless Steel32399
0022715TSKgel ODS-100V, 5 µm5Stainless Steel33.5496
0022716TSKgel ODS-100V, 5 µm5Stainless Steel35685
0022717TSKgel ODS-100V, 5 µm5Stainless Steel37.5700
0022718TSKgel ODS-100V, 5 µm5Stainless Steel310708
0022719TSKgel ODS-100V, 5 µm5Stainless Steel315724
0022720TSKgel ODS-100V, 5 µm5Stainless Steel325806
0022721TSKgel ODS-100V, 5 µm5Stainless Steel4.62399
0022722TSKgel ODS-100V, 5 µm5Stainless Steel4.63.5496
0022723TSKgel ODS-100V, 5 µm5Stainless Steel4.65685
0022724TSKgel ODS-100V, 5 µm5Stainless Steel4.67.5700
0022725TSKgel ODS-100V, 5 µm5Stainless Steel4.610708
0021455TSKgel ODS-100V, 5 µm5Stainless Steel4.615724
0021456TSKgel ODS-100V, 5 µm5Stainless Steel4.625806


Product Attributes

Pore size (mean): 10 nm
Molar mass limit: 1.0 × 10Da
Endcapped: Yes
Particle size: 5 µm
pH stability: 2.0-7.5
Functional group: octadecylmethylsilane
% carbon: 15
Surface area (m2/g): 450

Structure:

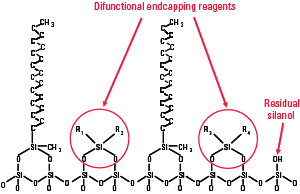

Bonded Phase Structure:

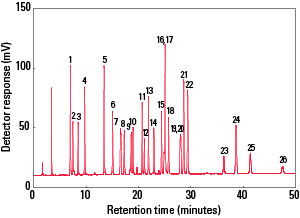

Separation of Antioxidants and UV Absorbants




Column: TSKgel ODS-100V, 5 µm,
4.6 mm ID × 25 cm

Mobile phase: A: H2O
B: CH3CN
Gradient: 0 min (60%B) 20 min (100%B)
Flow rate: 1.0 mL/min
Temperature: 50 °C
Detection: UV @ 225 nm
Injection vol.: 10 µL
Concentration: 10 mg/L each
Samples: 1. Cyasorb® UV-24 2. BHA
3. Ionox 100 4. Seesorb 101
5. Tinuvin® P 6. Yoshinox SR
7. Seesorb 202 8. BHT
9. Noclizer M-17
10. Yoshinox 2246R 11. Topanol®
12. Yoshinox 425 13. Cyanox®​
14. Cyasorb UV-531 15. Ionox 220
16. Nonflex CBP 17. Tinuvin 326
18. Tinuvin 120 19. Iranox®
20. Uvtex OB 21. Tinuvin 327
22.Tinuvin 328 23. Irganox 1010
24. Irganox 1330 25. Irganox 1076
26. Irgafos® 168

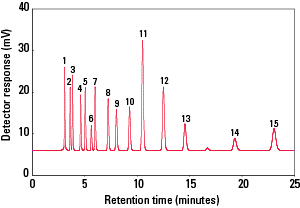

Separation of Organic Acids




Column: TSKgel ODS-100V, 5 µm, 4.6 mm ID × 25 cm
Mobile phase: 0.1% H3PO4
Flow rate: 1.0 mL/min
Temperature: 40 °C
Injection vol.: 10 µL
Samples: 1. oxalic acid (0.1 g/L)
2. I-Tartartic acid (0.5 g/L)
3. formic acid (1.0 g/L)
4. I-Malic acid (1.0 g/L)
5. I-Ascorbic Acid (0.1 g/L)
6. lactic acid (1.0 g/L)
7. acetic acid (1.0 g/L)
8. maleic acid (0.1 g/L)
9. citric acid (1.0 g/L)
10. succinic acid (1.0 g/L)
11. fumaric acid (0.025g/L)
12. acrylic acid (0.1 g/L)
13. propionic acid (2.0 g/L)
14. glutaric acid (1.0 g/L)
15. itaconic acid (0.025 g/L)

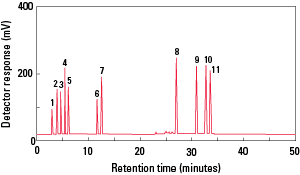

Separation of Water and Lipid-soluble Vitamins




Column: TSKgel ODS-100V, 5 µm,
4.6 mm ID × 15 cm

Mobile phase: A: 0.1% TFA in H2O
B: 0.1% TFA in ACN
Gradient: 0 min (0%B) 20 min (40%B)
22 min (100%B) 50 min (100%B)
Flow rate: 1.0 mL/min
Detection: UV @ 280 nm
Temperature: 40 °C
Injection vol.: 5 µL
Samples: 1. L-ascorbic acid
2. nicotinic acid
3. thiamine
4. pyridoxal
5. pyridoxine
6. caffeine
7. riboflavine
8. retinol
9. δ-tocopherol
10. α- tocopherol
11. α- tocopherol acetate

For additional applications, please see our applications database.



Code #DescriptionLiterature Type
AN010 TSKgel ODS-100V and 100Z for the analysis of basic compounds at low and neutral pH valuesApplication Note
AN022 High Throughput Reversed Phase HPLC Analysis of Caffeine using TSKgel ODS-140HTP and ODS-100V ColumnsApplication Note
AN109 U/HPLC Workflow Solution for Biosimilar CharacterizationApplication Note
DS1206 TSKgel ODS-100V ProductsOperating Conditions and Specifications
IM01 TSKgel Column Instruction ManualInstruction Manual
LCAT05A TSKgel U/HPLC Columns 2019 Product Guide -- RPC Columns, Silica-BasedProduct Catalog
PD01 TSKgel ODS-100Z and TSKgel ODS-100V Column Series Provides a Universal Solution for the Analysis of Samples Containing Acidic, Basic, Polar & Non-polar CompoundsPerformance Data
PD02 Novel Bonding Chemistry Imparts Enhanced Polar Selectivity to TSKgel ODS-100V Reversed Phase ColumnsPerformance Data
PD04 Efficient Reversed Phase Columns for High Throughput AnalysesPerformance Data
TIS115 Analysis of Methyl Methacrylate Monomer in Acrylic Denture Base Resin Technical Information Sheets
TIS119 High-Sensitivity Concurrent Determination of Omeprazole and its Two Metabolites in Human Plasma by Column-Switching High Performance Liquid ChromatographyTechnical Information Sheets
TIS124 HPLC Analysis of OTC Antipyretic AnalgesicsTechnical Information Sheets
TIS138 Analysis of Chromium (III) Picolinate in Supplements by HPLCTechnical Information Sheets
TP224 Workflow Solution for the Characterization of Biosimilar using Different Modes of Analytical Chromatography TechniquesTechnical Presentation
P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
0019308TSKgel Guard Cartridge Holder for 2 mm ID cartridges0 21522
0019018TSKgel Guard Cartridge Holder for 3.2 mm ID cartridges0 3.21.5523
0021841TSKgel ODS-100V Guard Cartridges for 2 mm ID, 5 µm columns, 3 pk5Stainless Steel21525
0021453TSKgel ODS-100V Guard Cartridges for 4.6 mm ID, 5 µm columns, 3 pk 5Stainless Steel3.21.5382
