TSKgel Hxl Columns

TSKgel HXL Columns for Reduced Polymer Adsorption and Limited Solvent Range

The TSKgel HXL column lines consists of eight columns with different pore sizes, TSKgel G1000HXL through TSKgel G7000HXL, and three columns with an extended linear range of the calibration curve, TSKgel GMHXL, TSKgel GMHXL-L and TSKgel MultiporeHXL-M. The calibration curves for all TSKgel HXL columns are shown.

Main characteristics
  • Ultra-low sample adsorption, i.e., the columns show true size exclusion behavior for most polymers
  • Maximum operating temperatures for TSKgel HXL columns is 60 °C for G1000HXL, G2000HXL, G2500HXL and G3000HXL, and 80 °C for the remaining columns in the product line. One of the mixed bed columns is available for high temperature analysis up to 140 °C.
  • Limited solvent range. The columns are shipped in THF, which can be exchanged for a limited number of organic solvents (see Table below).
  • TSKgel HXL columns are conventional GPC columns with column dimensions of 7.8 mm ID x 30 cm. Most HPLC systems do not require optimization of extra-column bandbroadening effects when working with conventional GPC columns.

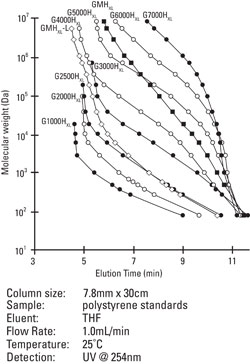

Calibration Curves for TSKgel HXL Columns with Polystyrene Standards

TSKgel HXL columns with linear calibration curves

Two of the TSKgel HXL columns are mixed bed columns, in which particles with different pore sizes are blended to provide an extended linear calibration curve. The TSKgel MultiporeXL-M column is packed with particles containing a wide range of pore sizes that provide a linear calibration curve. The unique multi-pore approach, pioneered by Tosoh, is a synthetic chemistry answer to the question of how to obtain a column with an extended linear calibration curve, while mixed bed columns represent a mechanical way of obtaining a linear calibration curve. In general, Multipore columns have a smoother, more linear, calibration curve. See the product page for multi-pore technology for the principles behind mixed bed and multi-pore columns.

Solvent compatibility for TSKgel HXL columns

The column shipping solvent limits the types of solvents that can be used with each column type.

Shipping Solvent

Can Be Replaced With

Tetrahydrofuran 2,3
benzene, chloroform, toluene, xylene,
dichloromethane, dichloroethane
Acetone**
carbon tetrachloride, o-dichlorobenzene, dimethylformamide,
dodecane, dimethyl sulfoxide, dioxane, ethylacetate,
FC-113, hexane, pyridine, hexafluoroisopropanol/chloroform,
methyl ethyl ketone, quinoline, cyclohexane
Chloroform**
m-cresol in chloroform, up to 10%
hexafluoroisopropanol in chloroform
Dimethylformamide dimethyl sulfoxide, dioxane, tetrahydrofuran, toluene
o-Dichlorobenzene 1-chloronaphthalene, trichlorobenzene

  1. In case of TSKgel HXL, keep flow rate below <0.5 mL/min during solvent change. Solvent can be changed one way/one time only.
  2. All TSKgel HXL analytical columns are shipped containing tetrahydrofuran (THF), except TSKgel GMH-HT columns, which contain o-dichlorobenzene.
  3. THF in TSKgel G1000HXL columns cannot be replaced with dichloromethane or dichloroethane.
  4. Prolonged exposure to carbon tetrachloride can corrode the stainless steel parts of a column and an HPLC system.
* 100% methanol cannot be used with TSKgel H-type columns; use this solvent with TSKgel SW-type or Alpha columns.
** TSKgel H columns may be specially ordered with this shipping solvent.

Recommended Solvent

Application

THF polystyrene, epoxy resin, phenoxy resin, polycarbonate,
polyisoprene, polyvinyl acetate, polyvinyl chloride,
monoglycerides, fatty acids, poly(butadiene),
polybutadiene, poly(methyl methacrylate),
poly(styrene-butadiene), poly(styrene-acrylonitrile)
N,N-Dimethylformamide (DMF) +/- 5mM LiBr
polyvinyl chloride, polyvinyl fluoride, urea resins,
polyurethane, polystyrene, polyester,
polyimido ether, polyimido ester,
polyphenol (aqueous solution), polyacrylonitrile
o-Dichlorobenzene (ODCB)
polyethylene, polypropylene
Chloroform polycarboxylic ether, acrylic resin,
epoxy resin, polystyrene
m-Cresol/Chloroform nylon, polyester, polyamide,
poly(ethylene terephthalate)
Toluene  polybutadiene, polysiloxane





Matrix: polystyrene-divinylbenzene
Particle Size (mean): 5 µm
Pore size (mean): 1.5 nm
Exclusion Limit: 1,000 Da             Visit the TSKgel G1000HXL product page.
Max. Temp. (ºC): 60
Shipping Solvent: THF




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 5 µm
Pore size (mean): 2 nm
Exclusion Limit: 10,000 Da             Visit the TSKgel G2000HXL product page.
Max. Temp. (ºC): 60
Shipping Solvent: THF




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 5 µm
Pore size (mean): 3 nm
Exclusion Limit: 20,000 Da             Visit the TSKgel G2500HXL product page.
Max. Temp. (ºC): 60
Shipping Solvent: THF




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 5 µm
Pore size (mean): 7.5 nm
Exclusion Limit: 60,000 Da             Visit the TSKgel G3000HXL product page.
Max. Temp. (ºC): 60
Shipping Solvent: THF




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 5 µm
Pore size (mean): 20 nm
Exclusion Limit: 400,000 Da             Visit the TSKgel G4000HXL product page.
Max. Temp. (ºC): 60
Shipping Solvent: THF




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 9 µm
Pore size (mean): 65 nm
Exclusion Limit: 4 million Da             Visit the TSKgel G5000HXL product page.
Max. Temp. (ºC): 80
Shipping Solvent: THF




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 9 µm
Pore size (mean): ND
Exclusion Limit: 40 million Da             Visit the TSKgel G6000HXL product page.
Max. Temp. (ºC): 80
Shipping Solvent: THF




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 9 µm
Pore size (mean): ND
Exclusion Limit: 400 × 106 Da             Visit the TSKgel G7000HXL product page.
Max. Temp. (ºC): 80
Shipping Solvent: THF




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 9 µm
Pore size (mean): mixed pore size
Exclusion Limit: 4 × 106 Da             Visit the TSKgel GMHXL mixed-bed product page.
Max. Temp. (ºC): 80
Shipping Solvent: THF




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 13 µm
Pore size (mean): mixed pore sizes
Exclusion Limit: 4 × 108 Da             Visit the TSKgel GMHXL-HT product page.
Max. Temp. (ºC): 140
Shipping Solvent: ODCB




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 9 µm
Pore size (mean): mixed pore size
Exclusion Limit: 4 × 106 Da             Visit the TSKgel GMHXL-L mixed-bed product page.
Max. Temp. (ºC): 80
Shipping Solvent: THF




Matrix: polystyrene-divinylbenzene
Particle Size (mean): 5 µm
Pore size (mean): each particle contains broad
distribution of pore sizes

Exclusion Limit: 500 - 2 x 106 Da             Visit the TSKgel MultiporeHXL-M product page.
Max. Temp. (ºC): 60
Shipping Solvent: THF
