TSKgel® SuperH Columns

TSKgel® SuperH Columns

The TSKgel® SuperH column line consists of eight columns with different pore sizes, TSKgel® SuperH1000 through TSKgel® SuperH7000, and four columns with an extended linear range of the calibration curve.  The calibration curves are shown below.

TSKgel® SuperH columns are high efficiency/high throughput versions of the conventional TSKgel® HHR columns. The TSKgel® SuperH columns are 6.0 mm ID x 15 cm.

Main characteristics:
  • Maximum operating temperature for TSKgel® SuperH  columns is 140 °C.
  • Broad solvent range. All TSKgel® SuperH columns are shipped in THF, which can be exchanged for a wide variety of organic solvents, as shown in the Table below.

Beware of extra-column bandbroadening

The volume of a TSKgel® SuperH column is 3.4 times smaller than that of a conventional 7.8 mm ID x 30 cm column. As a result, peak volumes will be proportionally smaller on TSKgel® SuperH columns compared to a corresponding TSKgel® HHR column. Thus, your HPLC system may require optimization of components that can give rise to extra-column band broadening, such as connecting tubing, injector, injection volume, detector cell volume, and detector time constant.

Columns with linear calibration curves

The TSKgel® SuperH product line contains four mixed bed columns, in which particles with different pore sizes are blended to provide an extended linear calibration curve. The mixed bed columns feature increasing linear calibration ranges, from TSKgel® SuperHM-L, SuperHM-N, SuperHM-M, to SuperHM-H.

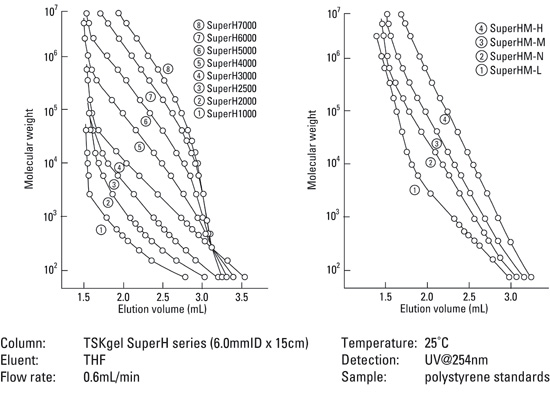

The calibration curves are shown below for all of the TSKgel® SuperH columns.


Shipping Solvent

Can Be Replaced With

Tetrahydrofuran 2,3

acetone, ethanol, quinoline, benzene, o-dichlorobenzene, ethyl acetate,

dodecane, FC-113, carbon tetrachloride, dichloromethane,

dichloroethane, trichloroethane, n-hexane, cyclohexane,

xylene, chloroform, 1,4-dioxane, hexafluoroisopropanol, toluene,
1-chloronaphthalene, N,N-dimethylacetoacetamide, methyl ethyl ketone,
trichlorobenzene, m-cresol/chloroform, dimethylformamide,
o-chlorophenol/chloroform, dimethyl sulfoxide, pyridine, N-methylpyrrolidone,
hexafluoroisopropanol/chloroform, methanol/chloroform

Notes:
  • See table below for appropriate flow rates for solvent exchange. After switching to a very polar solvent, switching to a nonpolar is not recommended.
  • All TSKgel® SuperH analytical columns are shipped containing tetrahydrofuran (THF).
  • Prolonged exposure to carbon tetrachloride can corrode the stainless steel parts of a column and an HPLC system.
* 100% methanol cannot be used with TSKgel® H-type columns; use this solvent with TSKgel® SW-type or Alpha columns.
** TSKgel® H-type columns may be specially ordered with this shipping solvent.

Solvent

Recommended Flow Rate

n-Hexane 0.9
methyl ethyl ketone 0.7
dichloromethane, ethyl acetate
0.6
toluene, chloroform 0.5
dimethylformamide 0.4
carbon tetrachloride, pyridine  0.3
dimethyl sulfoxide, dioxane, ethanol,
N-methylpyrrolidone, o-dichlorobenzene
 0.2
quinoline, hexafluoroisopropanal,
1-chloronaphthalene
0.1



Recommended Solvent

Application

THF polystyrene, epoxy resin, phenoxy resin, polycarbonate,
polyisoprene, polyvinyl acetate, polyvinyl chloride,
monoglycerides, fatty acids, poly(butadiene),
polybutadiene, poly(methyl methacrylate),
poly(styrene-butadiene), poly(styrene-acrylonitrile)
N,N-Dimethylformamide (DMF) +/- 5mM LiBr polyvinyl chloride, polyvinyl fluoride, urea resins,
polyurethane, polystyrene, polyester,
polyimido ether, polyimido ester,
polyphenol (aqueous solution), polyacrylonitrile
o-Dichlorobenzene (ODCB)
polyethylene, polypropylene
Chloroform polycarboxylic ether, acrylic resin,
epoxy resin, polystyrene
m-Cresol/Chloroform nylon, polyester, polyamide,
poly(ethylene terephthalate)
Toluene  polybutadiene, polysiloxane

Matrix: polystyrene-divinylbenzene
Particle Size (mean): 3 µm
Pore size (mean): 1.5 nm
Exclusion Limit: 1,000 Da             Visit the TSKgel® SuperH1000 product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF


Matrix: polystyrene-divinylbenzene
Particle Size (mean): 3 µm
Pore size (mean): 2.0 nm
Exclusion Limit: 10,000 Da             Visit the TSKgel® SuperH2000 product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF



Matrix: polystyrene-divinylbenzene
Particle Size (mean): 3 µm
Pore size (mean): 3.0 nm
Exclusion Limit: 20,000 Da             Visit the TSKgel® SuperH2500 product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF



Matrix: polystyrene-divinylbenzene
Particle Size (mean): 3 µm
Pore size (mean): 7.5 nm
Exclusion Limit: 60,000 Da             Visit the TSKgel® SuperH3000 product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF



Matrix: polystyrene-divinylbenzene
Particle Size (mean): 3 µm
Pore size (mean): 2.0 nm
Exclusion Limit: 400,000 Da             Visit the TSKgel® SuperH4000 product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF



Matrix: polystyrene-divinylbenzene
Particle Size (mean): 3 µm
Pore size (mean): 6.5 nm
Exclusion Limit: 4 x 106 Da             Visit the TSKgel® SuperH5000 product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF



Matrix: polystyrene-divinylbenzene
Particle Size (mean): 5 µm
Pore size (mean): ND
Exclusion Limit: 4 x 106 Da             Visit the TSKgel® SuperH6000 product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF



Matrix: polystyrene-divinylbenzene
Particle Size (mean): 5 µm
Pore size (mean): ND
Exclusion Limit: 400 x 106 Da             Visit the TSKgel® SuperH7000 product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF



Matrix: polystyrene-divinylbenzene
Particle Size (mean): 3 µm
Pore size (mean): mixed
Exclusion Limit: 400 x 106 Da             Visit the TSKgel® SuperHM-H product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF



Matrix: polystyrene-divinylbenzene
Particle Size (mean): 3 µm
Pore size (mean): mixed
Exclusion Limit: 4 x 106 Da             Visit the TSKgel® SuperHM-L product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF



Matrix: polystyrene-divinylbenzene
Particle Size (mean): 3 µm
Pore size (mean): mixed
Exclusion Limit: 4 x 106 Da             Visit the TSKgel® SuperHM-M product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF



Matrix: polystyrene-divinylbenzene
Particle Size (mean): 3 µm
Pore size (mean): mixed
Exclusion Limit: 4 x 105 Da             Visit the TSKgel® SuperHM-N product page.
Max. Temp. (ºC): 140
Shipping Solvent: THF
